Description:

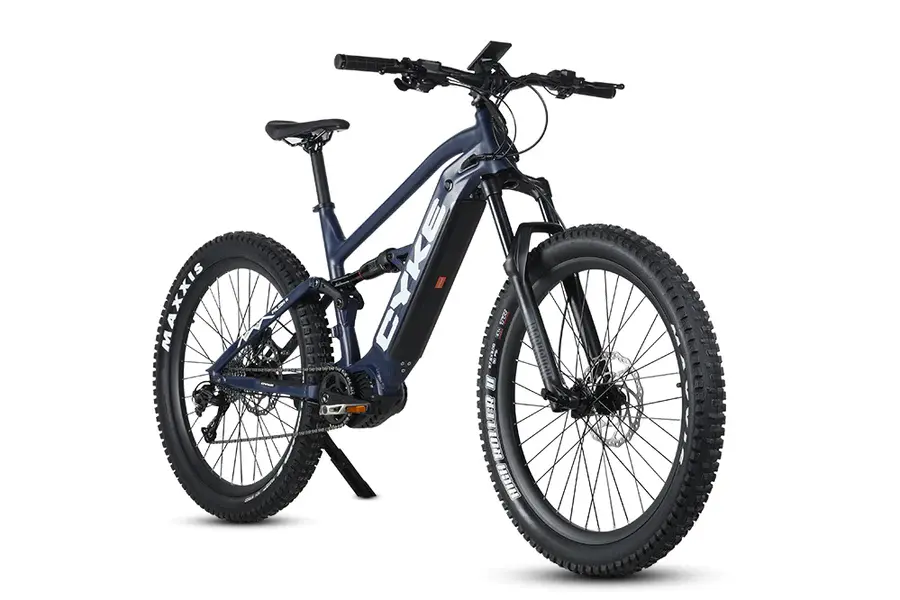

Take your ride to the next level with the Falcon-A Full Suspension E-Bike, built for speed, comfort, and ultimate off-road performance. Featuring a powerful motor, long-range battery, and full suspension system, this electric mountain bike is designed to handle rugged trails, steep climbs, and high-speed descents with ease. Its fat tires provide superior traction, while the advanced suspension absorbs shocks for a smooth and controlled ride on any terrain. Whether you’re conquering mountains or cruising through the city, the Falcon-A delivers power, precision, and adventure in every ride.

Key Features:
 High-Powered Electric Motor for Maximum Speed & Torque
 Full Suspension System for Superior Comfort & Control
 Long-Range Battery – Ride Longer Without Limits
 Fat Tires for Enhanced Grip on Dirt, Rocks, Snow & Sand
 Ideal for Mountain Trails, Off-Road Rides & Urban Exploration

Specs:

E-bike System
Battery
48V/15Ah, 720Wh Lithium-ion battery with LG 21700 cells
Motor
BAFANG Mid-drive, 500W rated power, 750W peak power, 48V, 130 Nm of torque, based on CAN6.3 protocol
Range
75 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
Display

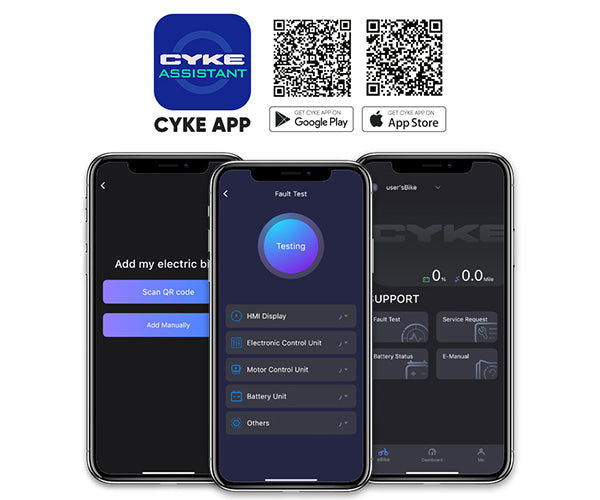

LCD display with Bluetooth, 4" TFT color screen, IP66
Charger
Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. UL Listed
Charging Time
Approx. 6-8 hours
Sensor
Torque sensor
Max Speed
28 MPH both in pedal-assist and throttle modes
Pedal Assist Modes
5 Levels
Frameset
Frame
Aluminum alloy, 17"/19"Size, 150mm travel
Fork
ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout
Shock
ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant
Wheels
Rim
Aluminum ring, 12G 36H AV, 596*41mm
Front Tire
Maxxis HIGH ROLLER II, 27.5x3.0"
Rear Tire
Maxxis HIGH ROLLER II, 27.5x3.0"
Front Hub
Aluminum alloy, disc brake, 12G 36H, ID15x150mm
Rear Hub
Aluminum alloy, disc brake, 12G 36H, ID12*197mm
Spoke
Black stainless, 12G, 247mm
Drivetrain
Shifter
SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
Rear Derailleur
SRAM RD-X5, 9 speed, EXACT ACTUATION™
Cassette
SRAM CS-PG-950, 9 speed
Crank arm
BAFANG 170mm length
Chainring
BAFANG MM G520, 34T
Chain
KMC E10S for e-bikes
Pedal
Aluminum alloy
Components
Saddle
VELO, boron steel, 160mm width
Seat Post
Aluminum alloy, Ø31.6*264mm
Stem
Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
Handlebar
Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
Grips
VELO, trail grip
Brakes
TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
Brake rotor
TEKTRO HD-E730, 3T, 203x2mm
Kickstand
Side Kickstand
Weight
Weight Limit
300 lbs
Net Weight
55 lbs
Gross Weight
86 lbs
Size
Bike Size
82.84 x 30.9 x 45.79 in
Box Dimension
66.54 x 33.9 x 11 in

Ride Beyond Limits – Get the Falcon-A Full Suspension E-Bike Today!
